Mono Laser All-in-One | Enterprise Printing Solutions

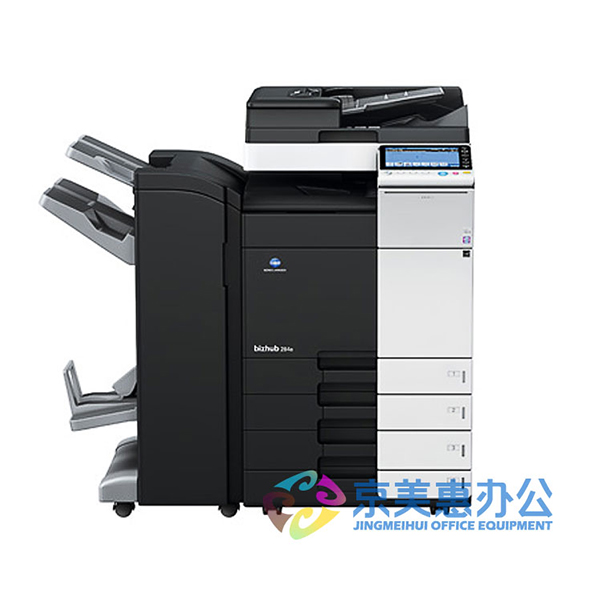

Konica Minolta bizhub 454e
Black&White 45ppm Multifunction (Copier, Printer, Scanner)

Standard Features

Black&White speed up to 45 ppm
Max. paper capacity 6,650 sheets (dual 500-sheet paper cassettes and 150-sheet bypass tray)
Standard dual scanning up to 160 opm
CPU 800MHz
Copier, printer, scanner
Paper weight 52-256g/㎡(paper cassettes), 60-300g/㎡(bypass tray)
Max. paper size A3
Standard 2GB ram, maximum ram 4GB and 250 GB hard disc
Auto duplex
Automatic document feeder is optional
Ethernet 10Base-T/100Base-TX/1000Base-T, USB1.1/2.0 interface
Wireless LAN to network

Specifications

Copy speed: 45cpm
Copy resolution: 600×600dpi
Original type: sheets, books, objects
Output size: SRA3-A5, B6S1, A6S1, thick paper, 8K, 16K, banner paper(210×457.3mm~297×1200mm)
Warm-up time: within 25sec.
First copy out time: within 4.6sec.
Multiple copy: 1 to 9,999 sheets
Magnification: 25-400% in 0.1% steps
Scaling up: 1:1.154/1.224/1.414/2.000
Scaling down: 1:0.866/0.816/0.707/0.500
Preset: 3 types
Fixed same magnification: 1: 1±0.5% or less
Image loss: max. 4.2mm or less for top edge; max. 3.0mm or less for bottom edge; max. 3.0mm or less for right/left edges
Auto duplex: paper size (W)100-320mm×(L)148-457.2mm, 52-256g/㎡
256 gradations

Print speed: 45ppm
Print resolution: 1800×600dpi, 1200×1200dpi
Print front: PCL 80, PS 137
Network protocol: TCP/IP,IPX/SPX(NDS support), SMB(NetBEUI), LPD, IPP1.1, SNMP, HTTP
PDL: PCL 5e/c emulation, PCL6(XL ver.3.0)emulation, PS3 emulation, XPS(Ver.1.0)
Support OS: Windows XP SP2/XP SP2 64bit/Vista/Vista 64bit/7/7 64bit/8/8 64bit/Server 2003/Server 2003 64bit/Server 2003 R2/Server 2003 R2 64bit/Server 2008/Server 2008 64bit/Server 2008 R2/Server 2012, Mac OS 9.2/X 10.2/X 10.3/X 10.4/X 10.5/X 10.6/X 10.7/X 10.8, Linux

Scan speed: single side 80ppm, A4 300dpi
Full-color Scanner
Standard dual scanning: up to 160 opm
Scan resolution: push 200dpi/300dpi/400dpi/600dpi;
pull 100dpi/200dpi/300dpi/400dpi/600dpi
Output format: TIFF, JPEG, PDF, compact PDF, OOXML(pptx，docx，xlsx), XPS, compact XPS, searchable PDF, PDF/A, linearised PDF
Driver: TWAIN Driver, HDD TWAIN Driver
Network protocol: TCP/IP(FTP, SMB, SMTP)
Scan size: max. A3(11"X17")
Scan to E-mail, Scan to FTP, Scan to BOX (HDD), Scan to PC (SMB), Network TWAIN, Scan to WebDAV, Scan to USB, Scan to Home, Scan to Me, Scan to Device Profile for Web Services (DPWS)

Transmission speed: less than 3 sec.(A4, V.34, 33.6kbps, JBIG)
Modern speed: 2.4-33.6kbps
Compression: MH/MR/MMR/JBIG
Number of abbr. dials: 2000 / number of program dials: 400 / number of group dials: 100 / sequential multiple station transmission: max. 600
Communication: Super G3
Connection mode: full-mode
Compatible line: Public Switch Telephone Network, Private Branch Exchange, Fax Communication Line
Sending paper size: A3, B4, A4
Recording paper size: max. A3
Resolution: 200×100dpi, 200×200dpi, 400×400dpi, 600×600dpi
Protocol: SMTP, POP
Format: send/eeceive TIFF-F; color/grey scale TIFF(RFC3949 Profile-C)
