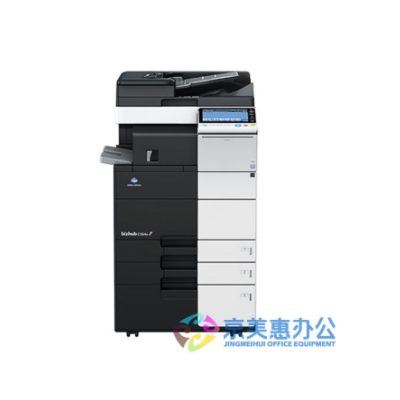

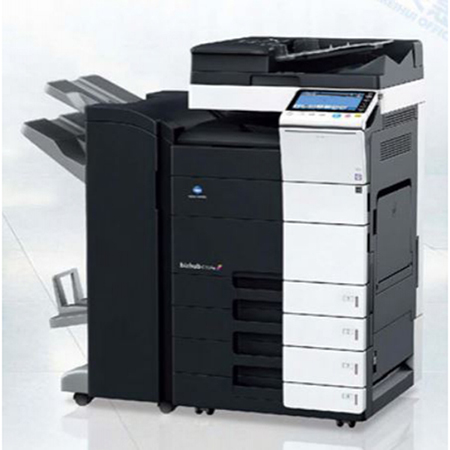

Konica Minolta bizhub C654e
65ppm Color Multifunction (Copier, Printer, Scanner, Fax) C654e
Standard Features
- Speed 65 pages per minute in color/black & white
- Copier, printer, scanner, fax
- Maximum paper size A3
- Dual 500-sheet paper cassettes and 150-sheet bypass tray
- Paper cassettes 52-256g/㎡, bypass tray 60-300g/㎡
- Standard 2GB ram, maximum ram 4GB and 250 GB hard disc
- Auto duplex
- 10Base-T/100Base-TX/1000Base-T (RJ45 interface)
- Wireless LAN to network
Specifications
- Copier Specifications
- Printer Specifications
-
- CPU: MPC8536 1.2GHz
- Printing resolution: 1200×1200dpi, 1800×600dpi
- PDL: PCL5e/c emulation, PCL6(XL Ver.3.0) emulation，PostScript 3 emulation, XPS Ver.1.0
- Network protocol: TCP/IP,IPX/SPX(NDS support), SMB(NetBEUI), LPD, IPP1.1, SNMP, HTTP
- Support OS: Window XP/XP x64/Vista/Vista x64/7/7x64/8/8x64/Windows Server 2003/2003 R2/Windows Server 2008/2008 R2x64/2012x64/Mac OS9.2, OSX 10.2/10.3/10.4/10.5(Power PC)/Mac OSX 10.5/10.6/10.7/10.8(Intel), Linux
- Printer font (PCL): 80
- Printer font (PS): 137
- Interface :Ethenet 10BASE-T/100BASE-TX/1000BASE-T, USB1.1/2.0, USB Host
- Scanner Specifications
-
- Interface： 10BASE-T/100BASE-TX/1000BASE-T, USB1.1/2.0, USB Host
- Driver： TWAIN Driver, HDD TWAIN Driver
- Network protocol： TCP/IP (FTP, SMB, SMTP)
- Scan speed： (B&W/Color) single-sided 90ppm, double-sided 180ppm (A4 crosswise, 300dpi)
- Scan size： Max. A3(11"*17")
- Output format： TIFF, JPEG, PDF, compact PDF, XPS, compact XPS, searchable PDF, PDF/A, PPTx, linearised PDF
- Scan resolution Push： 200dpi/300dpi/400dpi/600dpi
- Scan resolution Pull： 100dpi/200dpi/300dpi/400dpi/600dpi
- Scan mode： Scan to E-mail, Scan to FTP, Scan to BOX (HDD), Scan to PC (SMB), Network TWAIN, Scan to WebDAV, Scan to Me, Scan to Home, Scan to USB, Device Profile for Web Services (DPWS)
- Internet Fax
-
- Network protocol: SMTP, POP
- Connection mode: Full-mode
- Sending paper size: A3, B4, A4
- Recording paper size: Max. A3
- Resolution: 200 × 100 dpi, 200 × 200 dpi, 400 × 400 dpi, 600 × 600 dpi
- Interface: Ethernet (10BASE-T/100BASE-TX/1000BASE-T)
- Format: Send: TIFF-F, receive: TIFF-F, color/grey scale: TIFF (RFC3949 Profile-C)
- Fax Kit FK-511 (Optional)
-
- Communication: Super G3
- Compatible line: Public Switch Telephone Network, Private Branch Exchange, Fax Communication Line
- Line density: G3（8dot/mm × 3.85line/mm, 600 × 600dpi）
- Modem speed: 2.4 to 33.6kbps
- Compression: MH/MR/MMR/JBIG
- Sending paper size: Max. A3 (Long Length Support: Max.1,000 mm)
- Recording paper size: Max. A3 (Long Length Max. 1,000 mm — following the page division —)
- Transmission speed: Less than 3 sec. (A4, V.34,33.6kbps, JBIG)
- Number of abbr. dials: 2000
- Number of program dials: 400
- Number of group dials: 100
- Fiery Image Controller IC-414 (Optional)
-
- Type: Intel Pentium G850 2.9 GHz
- Memory: 2 GB
- HDD: 500 GB
- Print speed: Same as copy speed (when using the same original)
- Print resolution: 1,800 dpi (equivalent) × 600 dpi (at smoothing) or 1,200 dpi × 1,200 dpi (in 1,200 dpi mode)
- PDL: PCL 6, Adobe PostScript 3 (3020)
- Protocol: Ethernet (Apple Talk, TCP/IP), HTTP/HTTPS, SSL/TLS for HTTPS, SMB, Port9100 (Bi-Directional), IPP, LDAP, IPV6, SNMP v3
- Support OS: Windows XP / Server 2003 / Vista / Server 2008 R2 64bit/7 Mac OS X 10.4.11, 10.5.x, 10.6.x
- Font: Adobe PS 138 Roman fonts, Agfa PCL 80 Roman fonts and 1 bitmap font, Additional PCL 35 fonts, Euro Currency Resident Font
- Interface: Ethernet (10BASE-T/100BASE-TX/1000BASE-T), USB
